The impressive Ecclesia series is Johannus at its very best. This digital church organ – available in five different models – is affordably priced, it is powerful enough to accompany congregational singing, and it can be adapted to comply fully with your own individual needs. These are three strong arguments to choose the Ecclesia, the basic church organ that doesn’t compromise.
The Johannus Ecclesia does not simply elaborate on a home-organ concept. The Ecclesia was 100% designed for use as a church organ, and this has been the secret to its success. The instrument is powerful enough to fill every nook and cranny of the church with rousing pipe-organ music.
MAGNIFICENTLY POWERFUL
The Ecclesia treats the organist to the ultimate church-organ experience. The instrument is based on a revolutionary, state-of-the-art audio system, and it is equipped with multiple amplifiers, subwoofers and speakers. The result is a magnificently powerful instrument with the ultimate sound quality.
The Ecclesia is the dream come true of every church organist. The organ – available in five different models – offers a perfect solution for every church. Take the D-570 with its 18.3 audio system, for example. It has four manuals, 80 voices, four 32-foot voices and a well-balanced set of speakers. It is ideal for accompanying large congregations. It is a perfect and natural solution for even the most demanding of organists.
EXTENSIVE OPTIONS
Or what about the D-470? With three manuals, 65 voices and – just like the D-570 – a special vox humana tremulant, this organ is highly suited to accompanying large congregations or choirs and it offers a wealth of options for variation. The T-370 (three-manual model), the T-270 (two-manual model) and the T-170 (two-manual model) have 55, 40 and 26 voices respectively, which are operated by illuminated tabs. The quality of these models is every bit as high as their big brothers.
All Ecclesia organs include the styles Romantic, Symphonic, Baroque and Historic. Thanks to the Real Time Sampling technology, the Ecclesia can reproduce the sound of pipe organs with incredible precision. Close your eyes and sample the flawless sounds of famous international pipe organs from America and Europe.
SPECIFIC WISHES
Naturally, Johannus has given a lot of thought to the design of the Ecclesia. However, we like to offer organists the chance to shape the instrument in accordance with their personal wishes and requirements. For example, you can choose a color that matches the interior of your church. You can also expand your organ with elegantly crafted side panels and wooden draw knobs, you can add brass toe studs, or you can opt for extra orchestral voices. Visit our website for a detailed description of all custom options.
RELIABLE AND SOLID
Johannus operates all over the world, and we have been active in the United States for many years. We know the American market through and through. As a result, the Ecclesia is an American organ in heart and soul. However, the expert craftsmanship down to the very finest of details ensures that it retains a European twist.
We are a solid organization, and it’s no fluke that we’re one of the fastest growing organ makers in the world. With over forty years’ experience, we have proven our reliability, and our financial basis is extremely sound. In order to guarantee to you that the Ecclesia is of the very highest quality, we offer you a ten-year limited warranty. Contact your dealer to find out about the Johannus Ecclesia: the church organ that doesn’t compromise.
Overview
System | T9000 |
Manuals | 2 |
Voices | 40 |
Ranks | 49 |
Couplers | 3 |
Tremulants | 2 |
Console
Dimensions
Height (excluding music desk) | 46.1 in (117 cm) |
Height (including music desk) | 54.7 in (139 cm) |
Width | 56.7 in (144 cm) |
Depth (excluding pedal board) | 24.8 in (63 cm) |
Depht (including pedal board) | 43.7 in (111 cm) |
Finish
8 standard finishes on oak | • |
Other kind of wood or color | optional |
Music desk
Wooden desk | • |
Adjustable desk | optional |
Desk lighting | optional |
roll cover

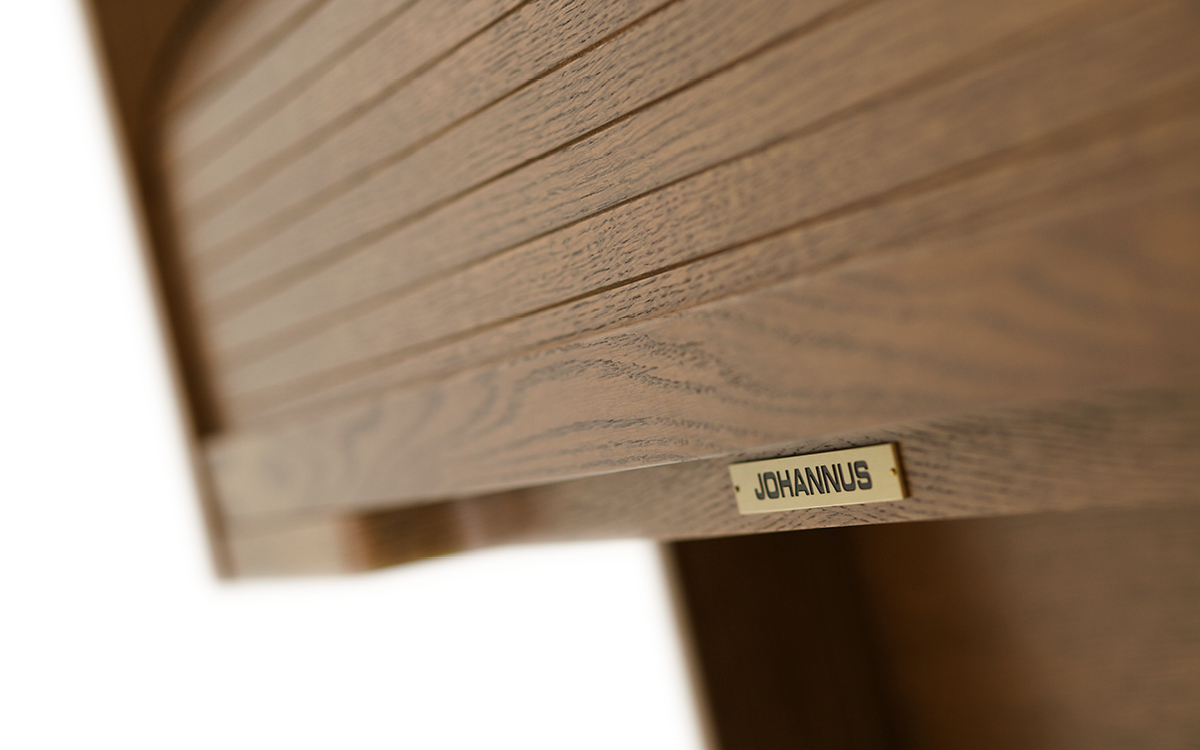

Wooden roll cover | • |
Manuals

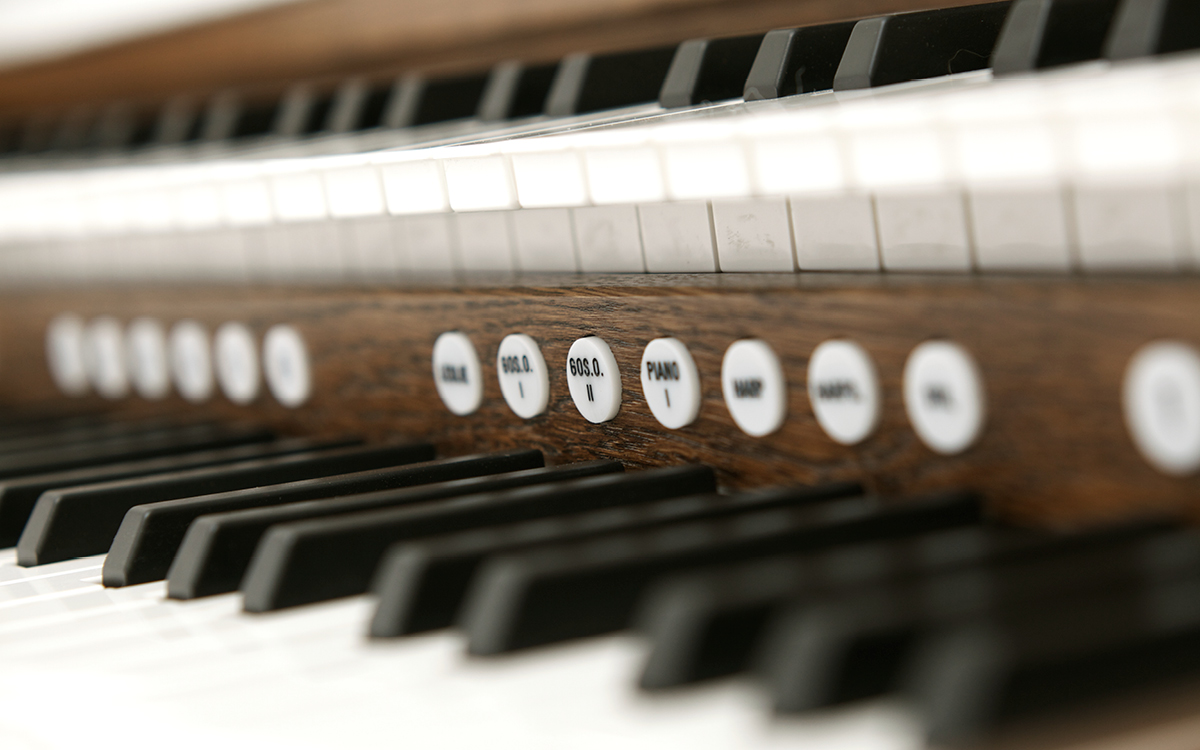

Synthetic keyboards (5 octaves) | • |
Synthetic keyboards with wooden core | optional |
Wooden keyboards (ebony/oak) with wooden core | optional |
Swell shoes
Wooden swell shoes | 3 |
Toe studs
Brass toe studs | optional |
Pedal board
32-note AGO pedal board with dark upper keys | • |
32-note AGO pedal with plain upper keys | optional |
Illuminated pedal board | • |
Bench
Bench with lift lid | • |
Adjustable bench | optional |
External connections
MIDI (IN, MOD-out, SEQ-out) | • |
Aux In | • |
Aux Out | • |
Headphones | • |
Audio
Audio system | 8.1 |
Audio control | DEA™ |
Reverb channels | 2.1 |
Reverb system
ASR-12 ™, 12 unique reverbs | • |
Output amplifiers
Full-range amplifiers (180 Watt) | 8 |
Bass amplifier (350 Watt) | 1 |
sound reproduction
External loudspeakers | 8 x UL 2700 |
External subwoofer | 1 x UL 3300 |
Headphones/ Aux Out | SSE™ |
Functions
Controllable functions
0 (cancel) | • |
REC (Recall) | • |
CF (Cantus Firmus) | • |
CH (Chorus) | • |
KT (Keyboard Transfer) | • |
MB (Manual Bass) | • |
Menu (Johannus Menu) | • |
Sequence | • |
S/S (General Swell) | • |
RO (Reeds Off) | • |
Trans. (Transposer) | • |
Sample styles
Romantic | • |
Symphonic | • |
Baroque | • |
Historic | • |
Setzer memory
Levels | 250 |
General memory locations per level | 6 |
Divisional memory locations per level | 6 |
Presets (programmable) | T |
Johannus Menu functions
Organ and reverberation volume | • |
Temperaments (incl. 1 custom programmable) | 12 |
Tuning (pitch) | • |
Expression pedals
PEPC™ (programmable expression pedal configuration) | • |
General Crescendo | • |
Miscellaneous
Bellows simulator | • |
LiveTune™ | • |
Dynamic chiff | • |
All organ voices C-C# | • |
• = standard - = not available
